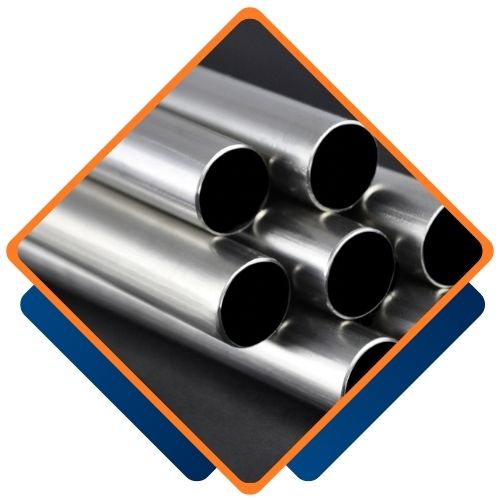

Blundell Pipes and Tubes, a reputable manufacturer and supplier located in Hamilton, New Zealand, specializes in top-notch Stainless Steel Hydraulic Pipes designed for high-pressure and precision fluid transfer applications. These pipes are crafted to provide outstanding strength, exceptional corrosion resistance, and durability, even in the toughest conditions. With cutting-edge technology and rigorous quality control, Blundell Pipes and Tubes guarantees precise dimensions, smooth internal surfaces, and consistent quality. Their Stainless Steel Hydraulic Pipes are a go-to choice in critical systems where safety, efficiency, and reliability are paramount.
These pipes are made from high-grade stainless steel alloys that include iron, chromium, nickel, and sometimes molybdenum. The chromium creates a protective oxide layer that boosts corrosion and oxidation resistance, while nickel enhances ductility and toughness. Molybdenum adds even more resistance to pitting and chemical damage. On the mechanical side, these pipes boast high tensile and yield strength, excellent fatigue resistance, good impact toughness, and dependable performance under high pressure and fluctuating temperatures.
| Size Range | OD 6 mm 60.3 mm |
| Standrads | EN 10216-5 TC1/TC2, ASTM A 269, PED 97/23/EC, AD 2000 , NACE MR0175 |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS 321, SS321H, SS347, Ss347H |
| Surface | bright annealed condition, and pickled + polished condition on customer’s request. |
| advantages | smooth surface, good hardness (below 80 HRB), no defects, clean inside surface, and high precision tolerances |
| Nominal Pipe Size (inches) | Outside Diameter | Hydraulic Pipe Schedule Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 10S | 40S | 80S | |||||||
| (mm) | (inches) | Wall Thickness and Weight | ||||||||
| mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 (0.049) | 0.28 | 1.73 (0.068) | 0.37 | 2.42 (0.095) | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 (0.065) | 0.49 | 2.24 (0.088) | 0.63 | 3.03 (0.119) | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 (0.065) | 0.63 | 2.32 (0.091) | 0.85 | 3.20 (0.126) | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 (0.065) | 0.81 | 2.11 (0.083) | 1.00 | 2.77 (0.109) | 1.27 | 3.74 (0.147) | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 (0.065) | 1.02 | 2.11 (0.083) | 1.28 | 2.87 (0.113) | 1.68 | 3.92 (0.154) | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 (0.065) | 1.30 | 2.77 (0.109) | 2.09 | 3.38 (0.133) | 2.50 | 4.55 (0.179) | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 (0.065) | 1.66 | 2.77 (0.109) | 2.69 | 3.56 (0.140) | 3.39 | 4.86 (0.191) | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 (0.065) | 1.91 | 2.77 (0.109) | 3.11 | 3.69 (0.145) | 4.06 | 5.08 (0.200) | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 (0.065) | 2.40 | 2.77 (0.109) | 3.93 | 3.92 (0.154) | 5.45 | 5.54 (0.218) | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 (0.083) | 3.69 | 3.05 (0.120) | 5.26 | 5.16 (0.203) | 8.64 | 7.01 (0.276) | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 (0.083) | 4.52 | 3.05 (0.120) | 6.46 | 5.49 (0.216) | 11.3 | 7.62 (0.300) | 15.3 |
| 3 1/2 | 101.6 | 4.000 | 2.11 (0.083) | 5.18 | 3.05 (0.120) | 7.41 | 5.74 (0.226) | 13.6 | 8.08 (0.318) | 18.6 |
| 4 | 114.3 | 4.500 | 2.11 (0.083) | 5.84 | 3.05 (0.120) | 8.37 | 6.02 (0.237) | 16.1 | 8.56 (0.337) | 22.3 |
| 5 | 141.3 | 5.563 | 2.77 (0.109) | 9.46 | 3.41 (0.134) | 11.6 | 6.56 (0.258) | 21.8 | 9.53 (0.375) | 31.0 |
| 6 | 168.3 | 6.625 | 2.77 (0.109) | 11.3 | 3.41 (0.134) | 13.9 | 7.12 (0.280) | 28.3 | 10.98 (0.432) | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 (0.109) | 14.8 | 3.76 (0.148) | 20.0 | 8.18 (0.322) | 42.5 | 12.70 (0.500) | 64.6 |
| 10 | 273.1 | 10.750 | 3.41 (0.134) | 22.7 | 4.20 (0.165) | 27.8 | 9.28 (0.365) | 60.4 | 12.70 (0.500) | 81.5 |
| 12 | 323.9 | 12.750 | 3.97 (0.156) | 31.3 | 4.58 (0.180) | 36.1 | 9.53 (0.375) | 73.9 | 12.70 (0.500) | 97.4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel Hydraulic pipes from Blundell Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Blundell Pipes and Tubes, one of the largest suppliers of Stainless Steel Hydraulic Pipes in Hamilton, New Zealand, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Yes, we offer custom sizes for Stainless Steel Hydraulic Pipes to meet your specific requirements. Our team at Blundell Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@blundellpipes.co.nz.
Stainless Steel Hydraulic Pipes find extensive use in hydraulic systems across various industries, including construction, oil and gas, power generation, marine, automotive, and heavy engineering. They’re commonly utilized in fluid power systems, hydraulic machinery, control systems, and high-pressure equipment. These pipes are also perfect for offshore platforms, shipbuilding, and industrial automation, thanks to their remarkable resistance to corrosion and pressure changes. With their smooth bore, leak-free operation, low maintenance requirements, and long service life, they are ideal for critical hydraulic applications.
